BG-RAIL cable trough lead away

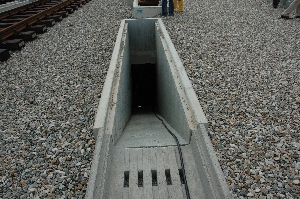

The BG-RAIL cable trough conduits are available in five sizes and designs and are the perfect connecting piece from the cable trough to the cable shaft. This prefabricated part is used for level compensation between the trough and shaft inlet.
Technical data
Channel material
concrete
Application areas: Rail station platform railway route cable shaft cable route Cable trough
| Picture | Sizes | Length | Width | Height: | Weight | Item no. | ||
|---|---|---|---|---|---|---|---|---|
| _ | ||||||||
| size 1 | _ | _ | _ | 2,250 kg | 41100 | |||
| size 2 | _ | _ | _ | 2,250 kg | 41101 | |||
| size 3 | _ | _ | _ | 2,500 kg | 41102 | ||
| size 4 | _ | _ | _ | 2,500 kg | 41103 | |||
| size 5 | _ | _ | _ | 2,600 kg | 41104 | |||
| _ | _ | _ | _ | 5,490 kg | 41210 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 6,110 kg | 41211 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 8,300 kg | 41212 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 8,300 kg | 41213 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 5,720 kg | 41214 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 6,350 kg | 41215 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 8,570 kg | 41216 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 8,570 kg | 41217 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 5,910 kg | 41218 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 6,540 kg | 41219 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 8,800 kg | 41220 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 8,800 kg | 41221 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 6,210 kg | 41222 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 6,860 kg | 41223 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 9,160 kg | 41224 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 9,160 kg | 41225 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 6,490 kg | 41226 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 7,150 kg | 41227 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 9,490 kg | 41228 | product drawing:
dwg
| ||
| _ | _ | _ | _ | 9,490 kg | 41229 | product drawing:
dwg
| ||
| Features | Weight | Item no. | ||
|---|---|---|---|---|
| front cap | ||||
BG-RAIL, front plate for cable trough eductions Material: concrete | 50 kg | 41107 | ||
Download category
product drawing | |
|---|---|
